Precisely cutting CPVC pipe is paramount for ensuring a leak-free and structurally sound plumbing system. A seemingly minor imperfection in the cut can compromise the integrity of the joint, leading to costly repairs and potential water damage. Therefore, mastering the art of clean CPVC cutting transcends mere technical proficiency; it’s foundational to the success of any CPVC plumbing project. Unlike some materials, CPVC’s inherent properties demand a specific approach to ensure a smooth, burr-free cut that readily accepts fittings. This involves selecting the appropriate cutting tool—a sharp utility knife might suffice for smaller diameters, but larger pipes often necessitate a dedicated pipe cutter for optimal results. Furthermore, preparation plays a crucial role; measuring accurately and marking the cut location with precision is essential to avoid wasted material and ensure the cut falls precisely where intended. Finally, understanding the material’s behavior during cutting—the potential for splintering or uneven cuts—and mitigating these issues through proper technique are key to achieving a professional-quality finish. Ignoring these preliminary steps often results in subsequent challenges during assembly, potentially compromising the entire project’s integrity and longevity. Consequently, a thorough understanding of the cutting process, coupled with the appropriate tools and technique, is essential to guarantee a successful outcome.
Moreover, the choice of cutting tool significantly impacts the quality of the cut. While a fine-toothed hacksaw can be used, it often results in a rougher edge requiring more extensive deburring. Consequently, this method is less efficient and increases the likelihood of introducing irregularities that could compromise the seal. In contrast, a dedicated CPVC pipe cutter, designed specifically for the material’s properties, offers superior precision and a cleaner cut. These tools typically feature a rotating blade that scores the pipe’s surface before cleanly severing it, minimizing the risk of splintering or crushing. However, even with the most advanced tool, improper technique can negate its advantages. For instance, applying excessive pressure can cause the pipe to deform, creating an uneven cut. Conversely, insufficient pressure may result in a jagged edge. Therefore, maintaining a steady, even pressure throughout the cutting process is crucial. Additionally, securing the pipe firmly in a vise or clamp prevents movement and ensures a straight, perpendicular cut. This simple step dramatically improves the accuracy and overall quality of the cut. Furthermore, after cutting, always thoroughly deburr the pipe ends with a suitable deburring tool to remove any sharp edges or irregularities that might interfere with the fitting. This meticulous attention to detail ensures a perfect fit and prevents potential leaks.
Finally, beyond the mechanics of cutting, understanding the implications of an imperfect cut is vital. A poorly executed cut can lead to a range of problems. For example, an uneven or burred cut will create a weak point in the pipe, potentially leading to stress fractures or leaks over time. Similarly, a cut that isn’t perfectly perpendicular will result in a misaligned joint, compromising the structural integrity and potentially creating pressure points that accelerate wear and tear. In addition, the presence of burrs can prevent the proper seating of fittings, leading to leaks and the need for costly repairs. Therefore, taking the time to ensure a clean, precise, and perpendicular cut is an investment that pays dividends in terms of long-term reliability and system longevity. In summary, consistent attention to detail, the correct choice of tools, and the execution of proper technique are essential to achieving a professional-quality CPVC cut. By understanding and applying these principles, plumbers and DIY enthusiasts alike can ensure the durability and reliability of their CPVC plumbing systems.
Gathering Your Tools and Materials
Preparing for a Clean CPVC Cut
Before you even think about touching your CPVC pipe, take a moment to gather everything you’ll need. Proper preparation makes the job safer, easier, and results in a much cleaner, more professional-looking cut. This isn’t a project where you can improvise; having the right tools readily available is crucial for a successful CPVC pipe cut.
Essential Tools: The Cutting Crew
First and foremost, you’ll need a sharp, dedicated CPVC cutter. Avoid using utility knives or hacksaws; these can crush or deform the pipe, leaving a ragged edge that’s difficult to work with and creates a potential weak point in your plumbing system. A quality CPVC cutter, designed specifically for this type of plastic pipe, will provide a clean, precise cut every time. These cutters typically use a rotating blade mechanism or a shear-like action, ensuring a straight, even cut without damaging the pipe’s integrity.
Next up is a pipe deburring tool. Even with the best cutter, there’s always the possibility of a small burr or rough edge left on the cut end of the CPVC pipe. These imperfections can hinder the proper fitting of connectors and potentially cause leaks. A deburring tool, which can be a simple hand tool or part of your CPVC cutter, efficiently removes these imperfections, creating a smooth, even surface ready for connection.
Finally, consider having a pencil or marker handy. This is useful for marking the exact point where you need to cut the pipe, ensuring accuracy and reducing waste. A measuring tape is also invaluable for precise measurements before cutting. Accurate measurement prevents costly mistakes and ensures that your pipe is cut to the exact length required.
Protecting Your Workspace
While cutting CPVC isn’t overly messy, it’s always best practice to protect your workspace. Lay down some old newspapers or a drop cloth to prevent any potential scratches or damage to your work surface. If you’re working outdoors, make sure the ground is relatively clean and stable to prevent the pipe from rolling around unexpectedly during the cutting process.
Safety First: Protective Gear
Safety should always be a top priority when working with any cutting tools. While CPVC isn’t inherently dangerous, it’s wise to wear safety glasses to protect your eyes from any potential debris or chips flying off during the cutting process. Gloves are also recommended to provide a better grip on the pipe and to protect your hands from sharp edges or potential irritants.
Materials Checklist: Everything in its Place
| Item | Description |
|---|---|
| CPVC Cutter | A dedicated cutter designed for CPVC pipe, ensuring a clean, precise cut. |
| Deburring Tool | Removes any burrs or rough edges from the cut pipe for a smooth, leak-free connection. |
| Pencil/Marker | For accurate marking of the cut point on the CPVC pipe. |
| Measuring Tape | Ensures precise measurements before cutting to avoid waste and errors. |
| Safety Glasses | Protects your eyes from flying debris during cutting. |
| Gloves (optional) | Provides better grip and hand protection. |
| Drop Cloth/Newspaper | Protects the workspace from scratches and debris. |
Measuring and Marking the CPVC Pipe
Precise Measurement: Getting it Right the First Time
Accuracy is paramount when cutting CPVC pipe. Inaccurate cuts can lead to leaks, poor fittings, and ultimately, a system that doesn’t function as intended. Before you even think about picking up your cutting tool, take your time to carefully measure the required length. Use a measuring tape, preferably one with metric and imperial markings to allow for flexibility. Double-check your measurements; it’s far easier to re-measure than to repair a botched cut. Consider adding a small buffer to your measurement (perhaps 1/8th of an inch or 2-3 mm) to account for any slight inaccuracies during the cutting process itself. This extra length provides some margin for error and can be easily trimmed later if necessary. Remember to account for the depth of any fittings you’ll be using; the pipe needs to extend far enough into the fitting to create a secure seal. Refer to your fitting’s instructions for specific insertion depth requirements.
Marking the Cut Line: Ensuring a Clean Cut
Once you’ve determined the precise length, it’s time to mark the pipe. A sharp, permanent marker is ideal for this task. Use a straight edge, such as a metal ruler or a carpenter’s square, to ensure the mark is perfectly perpendicular to the pipe’s axis. A clean, straight cut will ensure a tight seal and avoid issues with fitting installation. If you’re cutting multiple pieces of pipe to the same length, consider making a simple jig. A jig is a tool that allows you to quickly and repeatedly make the same measurement and cut, minimizing variations and saving time. This is particularly helpful when working on larger projects involving many pipes of identical lengths. For example, a simple jig could involve clamping a stop block to a straight edge, allowing you to consistently mark and cut each pipe to the exact same length.
Different Marking Techniques
While a simple marker line works well, some prefer more visible markings, especially on darker CPVC pipes. Consider using masking tape to create a clearer, more defined line for your cut. This provides better visibility and helps prevent accidental slippage of your cutting tool. For larger diameter pipes, you might find a pencil or a grease pencil offers a clearer mark. In any case, ensure that the mark is clear and unambiguous, allowing for a precise and consistent cut.
Helpful Table: Common CPVC Pipe Sizes and Cutting Considerations
| CPVC Pipe Diameter (inches) | Recommended Marking Tool | Cutting Tool Suggestion | Additional Notes |
|---|---|---|---|
| 1/2" | Permanent Marker or Masking Tape | Handheld Pipe Cutter or Hacksaw | Easy to handle and cut |
| 3/4" | Permanent Marker or Masking Tape | Handheld Pipe Cutter or Hacksaw | May require more pressure when using a hand cutter |
| 1" | Grease Pencil or Masking Tape | Handheld Pipe Cutter or Power Saw with fine-toothed blade | Consider a power saw for faster cutting |
Remember: Always prioritize safety when working with cutting tools. Wear appropriate safety glasses and gloves to protect yourself from injury.

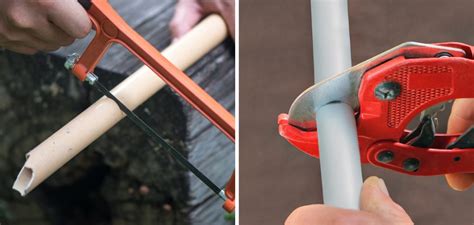

Choosing the Right Cutting Method
Using a Handheld Pipe Cutter
A handheld pipe cutter is a fantastic tool for clean, precise cuts on CPVC pipes, especially for smaller diameters. These cutters typically employ a rotating wheel mechanism that scores the pipe’s surface before cleanly severing it. The advantage here is the precision – you get a perfectly square cut every time, minimizing the need for further shaping or cleanup. This is crucial for maintaining a tight, leak-free seal when joining pipes. Before beginning, ensure the cutter’s wheel is sharp and properly aligned. Lightly score the CPVC several times to ensure a clean cut. Avoid applying excessive pressure; let the wheel’s rotation do the work. This prevents crushing or deforming the pipe, leading to potential leaks. Always use a steady hand, ensuring the pipe remains stable throughout the cutting process for consistent results. Remember to always wear safety glasses to protect your eyes from flying debris.
Employing a Hacksaw
A hacksaw, while a more traditional method, remains a viable option for cutting CPVC, particularly when dealing with larger diameters or in situations where a handheld cutter isn’t readily available. However, it requires more skill and precision. The key here is a fine-toothed blade specifically designed for plastic. Coarse blades can cause the CPVC to splinter or fracture, resulting in an uneven cut. Use a slow, steady back-and-forth motion, focusing on maintaining a consistent cutting speed and pressure to minimize chipping. Supporting the pipe firmly throughout the cut is essential, preventing any movement or wobbling that could lead to an uneven or angled cut. Remember to frequently clear the saw teeth of plastic shavings to maintain efficiency. While not as precise as a pipe cutter, a hacksaw provides sufficient accuracy with practice.
Leveraging a Power Saw
Power saws, including reciprocating saws and miter saws with fine-tooth blades, offer speed and efficiency, especially for multiple cuts or larger projects. However, this approach demands extra caution. The high speed of these saws necessitates precise control to avoid damaging the pipe, and a fine-tooth blade is absolutely essential; otherwise you risk shattering or melting the CPVC. Before starting, secure the pipe firmly using clamps or a vise, ensuring it is absolutely stable to prevent kickback. Lower the saw slowly and steadily, guiding it along the cut line with gentle but firm pressure. Avoid aggressive cutting; allowing the saw to do the work with a slow, controlled pace. The high speed and power of these saws can generate considerable heat; this, coupled with the CPVC’s sensitivity to heat, can cause melting or deformation near the cut line, compromising its structural integrity. Consider using a cooling lubricant, such as water, to help minimize the heat generation. Always wear appropriate safety gear, including eye protection, hearing protection, and a dust mask to prevent inhaling fine particles. After the cut, inspect the pipe thoroughly for any signs of melting or damage before proceeding.
| Cutting Method | Advantages | Disadvantages | Suitable for |
|---|---|---|---|
| Handheld Pipe Cutter | Precise, clean cuts; minimal cleanup; easy to use | Slower for larger pipes; requires more effort on thicker pipes | Small to medium diameter pipes |
| Hacksaw | Versatile, readily available; can handle larger pipes | Requires skill and patience; higher risk of uneven cuts; slower process | Larger diameter pipes, situations where other tools aren’t available |
| Power Saw | Fast and efficient for multiple cuts; handles large pipes quickly | Requires precise control; potential for damage if not used correctly; generates heat | Multiple cuts, larger projects, experienced users |

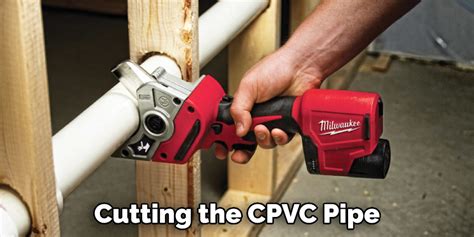

Using a CPVC Pipe Cutter
Understanding Your CPVC Pipe Cutter
CPVC pipe cutters, unlike some other cutting tools, are designed specifically for the unique properties of chlorinated polyvinyl chloride (CPVC) pipe. They offer a clean, precise cut minimizing the risk of damaging the pipe’s integrity. These cutters typically employ a rotating wheel mechanism, often with replaceable blades made from hardened steel or tungsten carbide. The choice of blade material significantly impacts the cutter’s longevity and cutting efficiency. Harder blades offer extended life and cleaner cuts, while softer blades might be more forgiving on the pipe but may require more frequent replacement. Before beginning any cutting operation, ensure your cutter is appropriately sized for the diameter of the CPVC pipe you’re working with. Attempting to cut a larger pipe with a smaller cutter will be inefficient and may damage both the tool and the pipe.
Preparing for the Cut
Accurate measurement is paramount before making any cuts. Use a measuring tape or ruler to precisely determine the cutting point. Mark the pipe clearly with a permanent marker to ensure accuracy. A well-placed mark prevents errors and wasted materials. Avoid making multiple marks, as this could weaken the pipe. Clean the pipe’s exterior surface in the vicinity of the cut to remove any dirt, debris, or adhesives which could interfere with the cutting process. A clean cut is crucial for a leak-free joint. This simple step will improve the overall quality of your work. Before beginning, carefully examine the pipe cutter for any damage or wear to the blades. Worn or damaged blades lead to uneven cuts and increase the chance of pipe deformation. Replace worn blades to ensure optimal performance and safety.
The Cutting Process
Once you’ve marked your cut line and prepared the pipe, firmly grip the pipe cutter around the pipe at the designated mark. Ensure the cutter is positioned squarely around the pipe to achieve a straight, even cut. Begin rotating the cutter’s wheel slowly and steadily, applying even pressure. Avoid applying excessive force, which can lead to damage to the cutter or the pipe itself. A slow and controlled approach ensures a precise, clean cut. The rotating wheel will gradually score the CPVC pipe, creating a clean separation. Continue rotating until the pipe is completely severed.
Deburring and Finishing Touches: A Deep Dive
While the CPVC pipe cutter produces a relatively clean cut, a small burr may remain on the inside and outside edges of the freshly cut pipe. This burr can impede the smooth fitting of the pipe into connectors or fittings and can also contribute to leaks. Removing this burr is crucial for creating a professional and leak-proof joint. Several methods can be employed for deburring. A dedicated deburring tool is readily available and specifically designed for this task. These tools come in various shapes and sizes catering to different pipe diameters. Alternatively, you can use a fine-grit sandpaper, carefully removing the burr from both the inside and outside of the pipe. Take your time and ensure that the burr is completely removed to avoid any fitting issues. Another technique involves using a specially designed CPVC pipe reamer to clean and slightly enlarge the internal diameter of the pipe, further enhancing the connection and minimizing leakage risks. Remember, a clean and properly deburred pipe end is the foundation of a successful, leak-free installation.
The level of deburring required will depend on the application and the specific requirements of the project. For critical applications, like high-pressure systems, thorough deburring is crucial to prevent premature wear and tear on the joints, maintaining the structural integrity and preventing water leakage. In less demanding scenarios, a more streamlined approach might suffice; however, always aim for a clean and consistent finish.
Consider the material of your deburring tool; softer materials are less likely to scratch the pipe, which could lead to weaker connections. Regular inspection of your tools will ensure they are still suitable for the job. A dull or damaged deburring tool will not only make the job harder but could also damage the pipe. Finally, always clean up any debris or scraps from the cutting process to maintain a safe and organized work area.
Post-Cut Inspection
After cutting and deburring, it’s crucial to inspect the cut end for any imperfections. Look for any irregularities, cracks, or damage that may compromise the joint’s integrity. If any damage is found, repeat the cutting and deburring processes, paying close attention to the technique. A thorough inspection ensures a successful and long-lasting installation.
| Deburring Method | Pros | Cons |
|---|---|---|
| Dedicated Deburring Tool | Efficient, precise, consistent results | Requires specialized tool |
| Fine-grit Sandpaper | Widely available, inexpensive | Can be time-consuming, requires careful technique |
| CPVC Pipe Reamer | Cleans and slightly enlarges the internal diameter | May require more force, potential for damage if used improperly |
Utilizing a Hacksaw for CPVC Cuts
Choosing the Right Hacksaw
Selecting the appropriate hacksaw is crucial for a clean and precise CPVC cut. While any hacksaw *can* work, a fine-tooth hacksaw (18-24 teeth per inch) is highly recommended. These finer teeth provide a smoother cut, minimizing the risk of fracturing or chipping the CPVC pipe. Avoid using a hacksaw with coarse teeth, as these tend to create jagged edges that can impede the fitting process and potentially compromise the integrity of the joint. Look for a hacksaw with a sturdy frame to ensure stability during the cutting process; a flimsy frame can lead to wobbly cuts and potentially injure you. Finally, consider the overall length of the hacksaw blade. Choose a blade long enough to comfortably accommodate the diameter of your CPVC pipe while still providing sufficient control.
Preparing the CPVC Pipe
Before you begin cutting, make sure the CPVC pipe is clean, dry, and free from any debris or contaminants. Any dirt or other substances on the pipe can dull your hacksaw blade prematurely and negatively affect the quality of your cut. It is also important to accurately measure and mark the cutting point on the pipe using a marker or pencil. A precisely placed cut will make the subsequent fitting process much smoother and more efficient. Ensure the marking is clearly visible to avoid any accidental miscuts. You might even want to use a measuring tape as a secondary check for accuracy, especially if you’re dealing with multiple cuts of the same length.
Securing the Pipe
Properly securing the CPVC pipe is paramount for a safe and accurate cut. A vise is ideal for this task. It offers a firm grip, allowing you to cut with consistent pressure and minimal risk of slippage. If a vise isn’t available, improvise by firmly clamping the pipe in place using sturdy clamps and a work surface. Make absolutely certain the pipe is securely held, preventing any movement during the cutting process. An unstable pipe can lead to an uneven cut, potentially causing the pipe to break or you to sustain an injury. Remember, safety always comes first.
The Cutting Process
Begin cutting with slow, even strokes, maintaining consistent pressure. Avoid applying excessive force, which could cause the blade to bind or break. Allow the hacksaw teeth to do the work; excessive pressure only leads to premature blade wear. Keep your hands positioned correctly, always maintaining a firm but relaxed grip on the hacksaw handle. Periodically check the progress of the cut to ensure that it remains straight. If you notice any deviation, gently adjust your cutting angle to correct the path. This ensures a clean cut and a precise fit for your CPVC joint.
Deburring and Finishing (Detailed Explanation)
Once the CPVC pipe is cut, you’ll notice sharp edges and potentially some burrs. These imperfections need to be addressed before fitting. Start by using a deburring tool—either a purpose-built tool or even a sharp utility knife—to carefully remove any sharp edges or burrs from both the inside and outside of the cut pipe. This is crucial for preventing injury and ensuring a proper seal when the pipe is joined with fittings. A slightly rounded edge is preferable. Next, consider using fine-grit sandpaper to smooth the cut surfaces further, making sure to remove any remaining imperfections. This will not only enhance the fit, but also reduce friction during the assembly process, potentially preventing damage during installation. Take your time and thoroughly examine the cut ends to ensure a professional finish. A clean and smooth cut is essential for a successful CPVC installation, leading to a robust and leak-free system.
| Tool | Purpose | Safety Precautions |
|---|---|---|
| Deburring Tool | Removes sharp edges and burrs from the cut CPVC pipe. | Handle with care to avoid accidental cuts or injury. |
| Fine-grit Sandpaper | Smooths the cut surface for a better fit and leak-free joint. | Wear appropriate eye protection to prevent debris from entering your eyes. |
Cleaning Up
After completing the cutting process, clean up your workspace, ensuring that all debris and scrap pieces are disposed of properly. Dispose of sharp objects carefully, using appropriate containers or protective coverings to prevent accidental injuries. This will help ensure a safe and organized working environment for any subsequent tasks or projects. Proper clean-up also prevents accidental injury or damage to other materials that might come in contact with the debris.
Employing a Rotary Tool for Precise Cuts
Choosing the Right Rotary Tool and Bit
Rotary tools, also known as Dremel-type tools, offer exceptional precision for cutting CPVC, especially when dealing with intricate angles or smaller diameter pipes. The key is selecting the appropriate tool and bit. Look for a rotary tool with variable speed control; this allows you to adjust the cutting speed based on the CPVC pipe’s thickness and the desired cut quality. A higher speed is generally better for cleaner cuts, but too high a speed can lead to overheating and potential damage to the pipe. Lower speeds are better for more delicate work or for making curves.
Regarding bits, diamond-coated cutting wheels are ideal for CPVC due to their ability to cleanly cut through the material without excessive chipping or fracturing. The size of the cutting wheel should be carefully considered; a smaller wheel is better for intricate work and tighter spaces while a larger wheel will be faster for straight cuts on larger pipes. Consider the depth of the cut you need to make and choose a bit that can comfortably handle the task. Always opt for high-quality bits from reputable manufacturers to ensure durability and a consistent cut.
Preparing the CPVC Pipe and Your Workspace
Before you begin cutting, it’s crucial to prepare both the CPVC pipe and your work area. Measure the pipe carefully to determine the exact cutting point, marking it clearly with a permanent marker. Ensure the pipe is securely supported. You can use a vise or clamps to hold the pipe steady during the cutting process, preventing movement and ensuring a straight, accurate cut. A stable work surface is essential; use a sturdy table or workbench, free of clutter. Safety glasses are paramount; flying debris is a common occurrence when cutting CPVC. It’s also wise to work in a well-ventilated area as some CPVC cutting processes can produce fumes.
The Cutting Process: A Step-by-Step Guide
With the pipe secured and your safety gear in place, begin the cutting process at a slow speed. Gradually increase the speed as you feel comfortable, maintaining a consistent pace throughout. Apply gentle, even pressure to the cutting wheel, guiding it along your marked line. Avoid applying excessive force, which can cause the bit to wander or damage the pipe. For curved cuts, use slow and deliberate movements, allowing the cutting wheel to follow the desired path.
Deburring and Finishing
Once the cut is complete, you’ll likely notice some burrs or rough edges along the cut line. This is perfectly normal and easily remedied. Using a fine-grit sandpaper or a deburring tool, carefully smooth the cut edges. This step is crucial for ensuring a proper seal when joining the pipes using solvent cement. A smooth finish also prevents potential leaks and ensures a long-lasting, reliable connection.
Safety Precautions: Always Prioritize Safety
Working with rotary tools demands utmost care. Always wear appropriate safety glasses to protect your eyes from flying debris. Hearing protection is also advisable as the tool can generate significant noise. Furthermore, ensure the work area is well-ventilated to disperse any potential fumes. Never operate the tool while tired or under the influence of drugs or alcohol. Take regular breaks to avoid fatigue and maintain focus.
Troubleshooting Common Issues
Despite careful preparation, issues can arise. If the CPVC pipe cracks or splinters during the cutting process, you may be applying too much pressure or using an inappropriate cutting speed. Reduce the pressure and speed, and consider using a lower-speed setting. If the cut is uneven, check that the pipe is securely clamped and that you are maintaining consistent pressure and speed. A wobbly cut may indicate a dull or damaged cutting wheel – replace it immediately. Remember, patience is key. It’s better to take your time and achieve a clean, precise cut than to rush and risk damaging the pipe.
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Cut | Inconsistent pressure, dull bit, pipe movement | Apply even pressure, replace bit, secure pipe firmly |
| Cracked/Splintered Pipe | Excessive pressure, high speed | Reduce pressure, lower speed |
| Overheating | Too high speed, prolonged use | Reduce speed, take breaks |
Achieving Clean, Square Cuts for Optimal Connections
Understanding the Importance of Clean Cuts
When working with CPVC (chlorinated polyvinyl chloride) pipe, achieving clean, square cuts is paramount. A poorly executed cut can lead to leaks, compromised structural integrity, and ultimately, system failure. Imperfect cuts create uneven surfaces, preventing the proper seating of fittings. This can result in weak joints prone to cracking under pressure, necessitating costly repairs or replacements. Taking the time to make precise cuts from the outset significantly enhances the longevity and reliability of your CPVC installation.
Choosing the Right Cutting Tool
Several tools can cut CPVC, each with its own advantages and disadvantages. A hand-held tubing cutter offers precision and control, especially for smaller diameter pipes. However, for larger pipes, a power miter saw equipped with a fine-tooth blade designed for plastics is far more efficient. Avoid using reciprocating saws (saws-alls) as they tend to create ragged, uneven cuts, defeating the purpose of precision. Always select a tool appropriate for the pipe’s diameter and the overall project scale.
Preparing the Pipe for Cutting
Before making any cuts, ensure the pipe is clean and free of debris. Dirt, dust, or other contaminants can interfere with the cutting process and potentially cause the tool to slip, resulting in an inaccurate cut. Use a clean cloth to wipe down the pipe’s surface around the intended cut location. This seemingly small step can dramatically improve the quality of your final cut.
The Cutting Process: Tubing Cutters
When using a tubing cutter, position the cutter squarely around the pipe, ensuring consistent pressure. Slowly rotate the cutter around the pipe, gradually tightening the cutting wheel with each rotation. Avoid applying excessive force, as this can deform the pipe or damage the cutter. Continue the process until the pipe is cleanly severed. Inspect the cut edge; if it isn’t perfectly square, repeat the process with a fresh cutting wheel.
The Cutting Process: Mitre Saws
With a miter saw, secure the pipe firmly in place, ensuring it’s aligned properly with the blade. Use a clamp or jig to prevent movement during the cut. Make a single, clean cut, avoiding multiple passes that can cause chipping or splintering. Remember to always wear appropriate safety gear, including eye protection and hearing protection, when operating power tools.
Deburring and Cleaning the Cut Ends
After cutting, it’s crucial to deburr the cut ends of the pipe. Even a perfectly square cut can have tiny burrs or irregularities that can hinder the proper fit of fittings. Use a deburring tool, a file, or even fine-grit sandpaper to smooth out the edges. This removes any imperfections and ensures a clean, smooth surface for a leak-proof connection.
Optimizing the Cutting Process for Consistent Results (Expanded Section)
Consistency is key when cutting CPVC. To achieve consistently clean and square cuts, consider these additional steps: First, invest in high-quality cutting tools. A sharp blade or cutting wheel is essential for a clean, precise cut, minimizing the chance of tearing or chipping. Dull tools lead to ragged cuts and increase the likelihood of errors. Second, practice on scrap pieces of CPVC before working on your actual project. This allows you to familiarize yourself with the chosen tool and develop a consistent technique. Third, utilize a visual guide, such as a marking pen, to ensure perfectly square cuts. Mark the pipe clearly at the desired cut point, ensuring the line is perfectly perpendicular to the pipe’s axis. This simple step serves as an invaluable aid to consistent accuracy. Fourth, consider using a support jig or clamp for longer pipes to prevent sagging or movement during the cut, particularly with hand tools. This helps maintain a straight cut and minimizes the risk of errors. Finally, pay attention to the cutting speed. Avoid rushing; a slow, steady cut is always preferable. Rushing introduces the possibility of slips, uneven cuts, and unnecessary re-work, ultimately impacting the overall quality and reliability of your connections.
Using Solvent Cement
Once you have achieved clean, square cuts, apply the appropriate solvent cement to create a strong and reliable joint. Follow the manufacturer’s instructions carefully; improper application can compromise the joint’s integrity. Always ensure proper ventilation while working with solvent cement as it emits fumes.
| Tool | Advantages | Disadvantages |
|---|---|---|
| Tubing Cutter | Precise, good for smaller pipes, portable | Slower for larger pipes, requires more effort |
| Miter Saw | Fast, efficient for larger pipes | Requires more setup, less precise for very small pipes |
Deburring and Cleaning the Cut Ends
Understanding the Importance of Deburring and Cleaning
After cutting CPVC pipe, you’re left with a raw, uneven edge. This isn’t just an aesthetic issue; it’s crucial for the structural integrity and performance of your plumbing system. Deburring removes the sharp, potentially damaging burrs created during the cutting process. These burrs can impede the smooth flow of water, potentially leading to reduced pressure or even blockages over time. Furthermore, a clean, deburred end ensures a proper, leak-free connection when you join the pipes using fittings. Neglecting this seemingly small step can significantly compromise the longevity and reliability of your CPVC installation.
Tools You’ll Need
Deburring and cleaning CPVC pipe requires minimal tools. You’ll primarily need a deburring tool specifically designed for CPVC. These tools are relatively inexpensive and readily available at most hardware stores. They typically feature a sharp blade or cutting wheel to efficiently remove the burrs. Additionally, you might find a pipe cleaner or a clean cloth helpful for removing any remaining debris or dust. A small brush can also be useful for cleaning the inside of the pipe.
The Deburring Process
With your CPVC pipe cut to length, carefully insert the deburring tool into the cut end. Rotate the tool slowly and steadily, applying gentle but firm pressure. The tool’s blade should remove the burr, creating a smooth, even edge. Take your time; rushing can lead to uneven deburring or even damage to the pipe itself. Inspect the cut end visually to ensure that all burrs have been removed and the edge is smooth and clean. If necessary, repeat the process until you achieve a satisfactory result.
Inside Deburring
Don’t forget the inside of the pipe! While less visible, the inside burr can also restrict water flow. Use a small deburring tool designed for internal cleaning or carefully run a suitable cleaning brush inside the pipe to remove any internal burrs or debris. This step is equally important for ensuring an efficient and leak-free connection.
Cleaning the Cut End
Once you’ve deburred the pipe, it’s essential to clean the cut end thoroughly. This removes any dust, debris, or small particles that may have accumulated during the cutting and deburring process. These particles can interfere with the adhesive bond when joining the pipes with fittings, potentially leading to leaks. Use a clean, dry cloth to wipe the exterior of the cut end. For the interior, a small brush or compressed air can be beneficial to remove any lingering particles.
Importance of a Clean Surface
A clean surface ensures optimal adhesion of the CPVC cement or solvent used for joining the pipes. Any contamination can weaken the bond, making the joint more prone to leakage. Thorough cleaning prevents this, ensuring the integrity and reliability of the entire plumbing system.
Different Deburring Tools
The market offers various deburring tools. Some are simple hand tools, others are more sophisticated, even power-driven. The best tool depends on your needs and frequency of CPVC pipe work. For occasional use, a simple hand deburrer is sufficient, offering effective burr removal with minimal effort. However, for frequent plumbing tasks, a more robust tool may save time and effort.
| Tool Type | Pros | Cons |
|---|---|---|
| Hand Deburrer | Inexpensive, easy to use | Can be slower for multiple pipes |
| Rotary Deburrer | Faster for multiple pipes | Requires more skill and can be more expensive |
| Pipe Cleaning Brush | Effectively cleans the inside of the pipe | May not be effective on stubborn burrs |
Troubleshooting Common Issues
If you encounter difficulty removing a stubborn burr, try using a slightly more aggressive deburring tool or applying a bit more pressure (while always being careful not to damage the pipe). If the burr is particularly tenacious, consider using a fine-grit sandpaper to gently smooth the edge after using a deburring tool. Remember, patience and attention to detail are key to achieving a clean, well-deburred, and leak-free CPVC pipe connection.
Preventing Leaks and Ensuring a Secure Fit
Choosing the Right Tools
The success of your CPVC cutting and joining hinges on using the right tools. A sharp, fine-toothed saw specifically designed for plastic pipes is crucial. Avoid using a hacksaw or other saws with coarse teeth, as these can crush the CPVC, leading to irregularities and potential leaks. A tubing cutter designed for CPVC is even better, providing a cleaner, more precise cut. For deburring, a simple deburring tool or even fine-grit sandpaper is sufficient. Investing in quality tools upfront will pay off in the long run by ensuring cleaner cuts and preventing costly mistakes.
Making the Cut
With your chosen tool, make a clean, square cut perpendicular to the pipe’s axis. Avoid angled cuts, as these will create weak points and compromise the seal. A clean cut minimizes the amount of deburring required. If using a tubing cutter, slowly rotate the cutter around the pipe, applying even pressure to prevent ovaling or crushing. A steady, controlled cut is essential for accuracy. Take your time and avoid rushing the process.
Deburring the Pipe
After cutting, it’s vital to remove any burrs or rough edges from the inside and outside of the pipe. These imperfections can interfere with the proper seating of the fitting and create leak points. Use your deburring tool or sandpaper to carefully smooth the cut edge until it’s perfectly smooth and free of any irregularities. Pay close attention to both the inside and outside diameters. A thorough deburring process is a crucial step in preventing leaks.
Preparing the Fitting
Before joining the pipe and fitting, ensure the fitting is clean and free of any debris. Any dirt or contaminants can prevent a proper seal. Inspect the fitting for any imperfections before installation. Similarly, ensure the pipe is clean before inserting it into the fitting. Take a moment to double-check everything before proceeding to prevent issues later.
Applying Solvent Cement (Primer and Cement)
Applying solvent cement correctly is paramount to achieving a strong and leak-free joint. Always follow the manufacturer’s instructions precisely. Typically, you’ll apply a thin, even coat of primer to both the pipe and fitting, allowing it to dry for the recommended time before applying the cement. This process ensures proper adhesion of the cement to the CPVC. Avoid over-applying either the primer or the cement. The correct amount is key to a successful bond.
Inserting the Pipe
Once the primer has dried (the manufacturer will specify how long this should take), apply a thin coat of solvent cement to both the pipe and fitting, ensuring full coverage of the joining surfaces. Then, quickly but firmly, insert the pipe into the fitting. Rotate the pipe slightly to ensure a complete and even distribution of the cement. The exact depth of insertion will be specified by the manufacturer and marked on the fitting.
Holding the Joint
Maintaining the correct position of the joint is essential until the cement has fully cured. The manufacturer’s instructions will specify how long you need to hold the joint in place – typically 30-60 seconds. Gently rotate the pipe to prevent voids. Improper support during this crucial period will weaken the connection and increase the likelihood of leaks.
Ensuring a Secure Fit: Detailed Examination of the Joint and its Implications
A secure fit isn’t just about applying cement correctly; it’s about meticulous attention to detail throughout the entire process. Starting with the initial cut, a perfectly square cut perpendicular to the pipe’s axis minimizes stress concentrations. Any deviation from this ideal can compromise the joint’s strength and longevity. The deburring process is equally important; unseen microscopic burrs can create weak points, even with perfect cement application. Insufficient deburring can lead to stress cracking over time, ultimately resulting in leaks. The depth of insertion matters significantly. Inserting too shallowly leads to an incomplete bond, while inserting too deeply can cause the fitting to crack. Therefore, adhering precisely to the manufacturer’s specifications ensures the correct cement coverage and joint integrity. Finally, improper handling during the curing process can compromise the joint’s integrity. Gentle, even pressure and support are crucial during this stage, guaranteeing the cement cures effectively. Any disturbance can lead to a weakened joint and increased risk of leaks. Paying careful attention to each step, from cut to cure, results in a long-lasting, secure and leak-free installation.
Testing the Joint
After the cement has fully cured (check the manufacturer’s instructions for the curing time), test the joint for leaks by pressurizing the system. Use a pressure gauge to monitor the pressure and ensure there is no pressure drop indicating a leak. If a leak is detected, you will have to carefully remove the defective joint and repeat the process, ensuring each step is performed precisely. A thorough and careful approach guarantees both quality and longevity.
| Step | Critical Point | Potential Issue if Missed |
|---|---|---|
| Cutting | Square, perpendicular cut | Stress concentration, weakened joint, leaks |
| Deburring | Smooth, burr-free interior and exterior | Imperfect seal, leaks, stress cracking |
| Cement Application | Even, thin coat; proper drying time | Incomplete bond, weakened joint, leaks |
| Insertion | Correct depth; full contact with cement | Incomplete bond, leaks |
| Curing | Proper support and undisturbed curing | Weak joint, leaks |
Precise CPVC Cutting Techniques for Clean, Professional Results
Cutting CPVC pipe accurately and cleanly is crucial for ensuring leak-free joints and a professional-looking installation. The method chosen should prioritize a square, burr-free cut to facilitate proper fitting. Improper cuts can lead to leaks, weakening of the pipe, and ultimately, system failure. Therefore, selecting the right tool and employing the correct technique is paramount.
For smaller diameter CPVC pipes (typically up to 1 inch), a sharp, fine-toothed hand saw specifically designed for plastic pipes is recommended. This allows for precise control and minimizes the risk of crushing or deforming the pipe. The cut should be made slowly and steadily to prevent overheating the plastic, which can weaken the material. After cutting, any burrs should be carefully removed using a deburring tool or fine-grit sandpaper to create a smooth, even surface for a leak-proof connection.
Larger diameter CPVC pipes often benefit from the use of a power tool such as a miter saw with a fine-toothed blade specifically intended for plastic. This method provides speed and efficiency, particularly in large-scale projects. However, it requires extra caution to prevent overheating and the creation of significant burrs. The use of a low speed setting and multiple passes can help mitigate these issues. As with hand sawing, post-cutting deburring is essential for a quality finish.
Regardless of the cutting method employed, it is vital to ensure the cut is square and perpendicular to the pipe’s axis. A poorly aligned cut will compromise the integrity of the joint and lead to leaks. The use of a square or a pipe cutting guide can greatly improve accuracy. Proper preparation and attention to detail are fundamental to achieving a successful and professional CPVC installation.
People Also Ask About Cutting CPVC
Can I use a regular hacksaw to cut CPVC?
Using a Regular Hacksaw
While technically possible, using a standard hacksaw to cut CPVC is not recommended. The teeth are typically too coarse, leading to a ragged cut with significant burrs. This increases the likelihood of leaks and makes fitting difficult. A fine-toothed saw specifically designed for plastic is significantly superior in providing a clean, precise cut.
How do I avoid burrs when cutting CPVC?
Avoiding Burrs
Burrs are a common problem when cutting CPVC. To minimize them, use a sharp blade and a slow, steady cutting motion to avoid overheating the plastic. Always deburr the cut end after cutting using a deburring tool or fine-grit sandpaper. A smooth, clean cut surface is crucial for a secure and leak-proof joint.
What’s the best tool for cutting CPVC?
Choosing the Best Tool
The optimal tool depends on the pipe diameter and project scope. For smaller diameter pipes, a fine-toothed hand saw designed for plastic is sufficient. For larger diameters or large-scale projects, a miter saw with a fine-tooth blade for plastic is more efficient. Always ensure the blade is sharp to achieve a clean cut and minimize burrs.
What happens if I don’t deburr CPVC after cutting?
Consequences of Not Deburring
Failing to deburr CPVC after cutting can result in several issues. Burrs can prevent proper seating of fittings, leading to leaks. They can also weaken the pipe at the cut point, potentially causing failure under pressure. Deburring is an essential step in ensuring a leak-free and durable CPVC installation.
